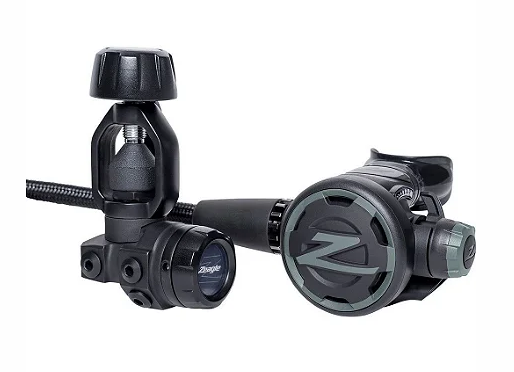

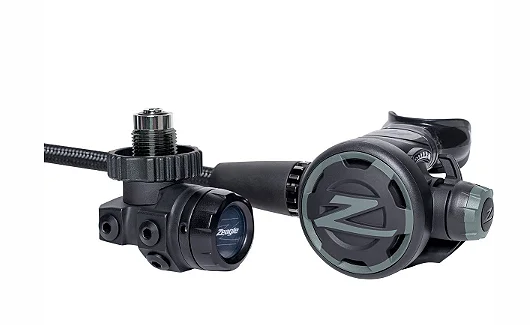

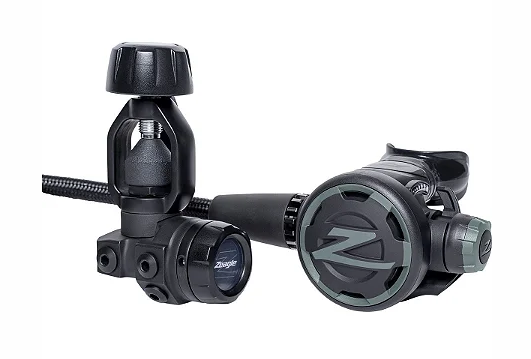

Zeagle F8 Diving Regulator

Zeagle F8 Diving Regulator – The best regulator from Zeagle

Zeagle introduces a new regulator model featuring a completely redesigned second stage platform. The F8 name is derived from the well-established Zeagle Flathead series regulators. This all-new design is Zeagle’s top regulator, with more than 20 new improvements. Zeagle regulators are manufactured in the USA under strict quality control at their own facility, using state-of-the-art equipment and procedures. Your regulator is one of your most important pieces of equipment—no matter what type of diving you do, you can do it better with Zeagle. The F8 has a very low profile, barely extending above the tank valve, and positions low-pressure hoses directly to the sides, a configuration preferred by many divers.

The first stage regulator is made from marine-grade black chrome-plated brass and features a balanced diaphragm design that is environmentally sealed. The diaphragm transmits pressure changes to the internal mechanism, eliminating the need for surrounding water to enter it. The benefit of this design is that none of the internal parts are exposed to contaminants such as salt, sand, chlorine, or pool acids, which can cause corrosion and mineral buildup, degrading regulator performance.

Hose length: 30" (76 cm)
Weight: Approximately 41 oz (1,161 g)
Nitrox ready up to 40% O₂

First Stage:

• Balanced diaphragm design
• Inherently environmentally sealed
• Dry environmental seal with hydro transmitter
• Precision stainless steel HP valve with advanced polymer seat
• HP valve improves responsiveness and performance at all breathing rates
• High-performance porting
• 5 low-pressure ports (3/8" threaded)
• 2 high-pressure ports (7/16" threaded)

First Stage Materials:

• Body: Marine-grade black chrome-plated brass
• HP valve: Stainless steel
• Seat: Advanced polymer
• O-rings: Buna-N

Second Stage:

• Downstream valve
• Pneumatically balanced design
• Dive/Pre-Dive Venturi control
• Adjustable inhalation resistance
• Anti-freeze heat transfer device

Second Stage Materials:

• Cover: Flexible thermoplastic
• Case: Grooved thermoplastics
• Diaphragm: Elastomeric polymer
• Exhaust valve: Elastomer
• Mouthpiece: Silicone rubber
• Inlet tube: Zirconium plated
• O-rings: Buna-N

More than 20 new improvements:

• Compact profile
• Smaller mouthpiece: super soft silicone with tear-resistant bite tabs, color-accented
• Improved exhaust valve for drier performance and lower exhalation effort
• Inhalation effort adjustment knob: improved grip and styling
• Threaded front cover ring for added security
• Enhanced heat exchanger with improved materials and larger surface area for cold dissipation
• Zirconium-coated inlet tube for increased corrosion resistance
• Improved inhalation diaphragm with better response and tear resistance
• Patented seat-saving orifice
• Low-pressure second stage seat
• Second stage spring made from super alloy
